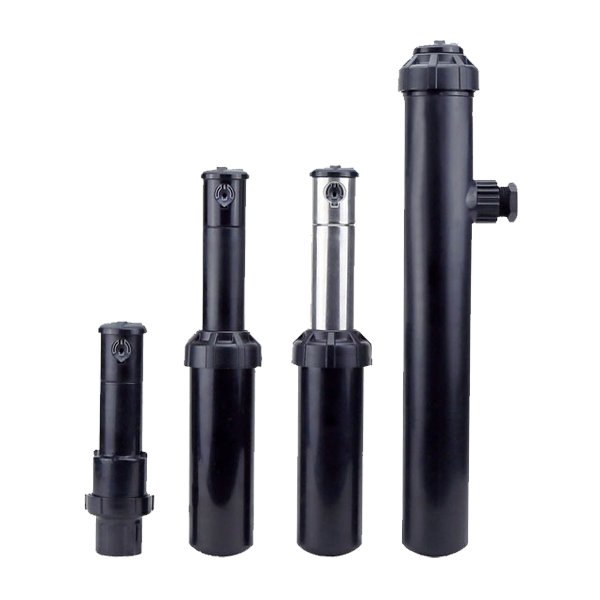

T5 Series

The Toro T5 RapidSet series rotor has the features to satisfy all your basic irrigation needs while surprising you with a few extras. The T5 offers an extra 2.5 cm of pop-up height compared to most competitive units. All lawn models are now available with the optional RapidSet feature, a quick and easy way to make arc adjustments – with no tools!



Comes with a full set of 8 standard nozzles (25 degree trajectory) and 4 low angle 10 degree trajectory nozzles that utilise Airfoil technology, which creates a zone of low pressure just below the main stream to gently guide water downward for unmatched uniformity without forcefully washing out newly-laid seeds.

Downloads

  • Arc 40 to 360 degrees
  • Body style 3/4" MIPT
  • Trajectory 10 or 25 degrees
  • Radius 7.62m to 15.2m
  • Flow rate 2.8 to 36.7 LPM
  • Activation type COM
  • Operating pressure 1.7 to 4.8 bar (25-70 psi)

Features

  • RapidSet arc adjustment (optional)
  • Set arc between 40 and 360 degrees
  • 127mm (5”) pop-up
  • Stainless steel riser and nozzle base
  • Standard and low-angle nozzles available
  • Airfoil technology nozzles
