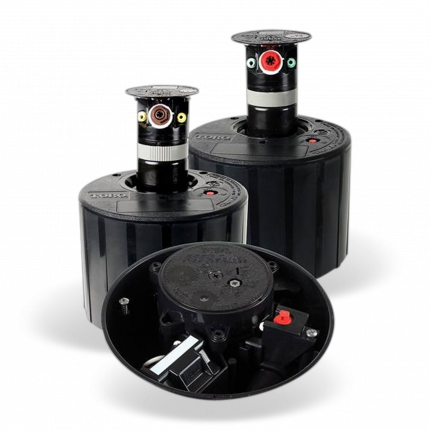

Infinity 55-6 multi trajectory

The Toro Infinity 55-6 series sprinkler has all the quality features of increased efficiency, enhanced course appearance and improved playing conditions, for which Toro is renowned, but with the big, added benefit of ‘Smart Access’.

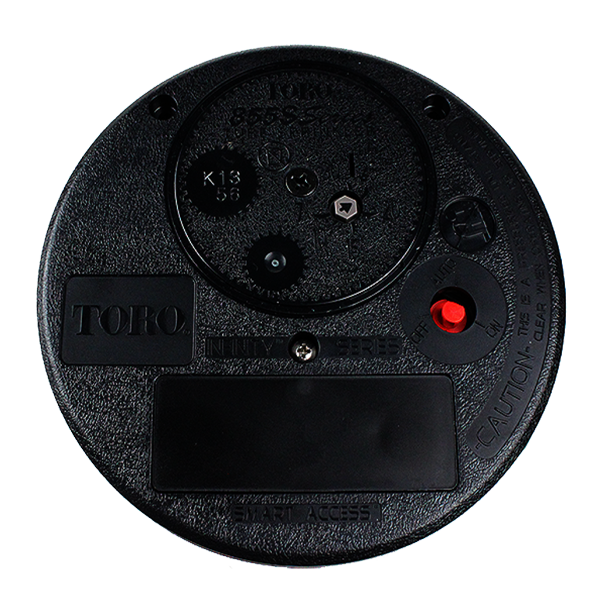

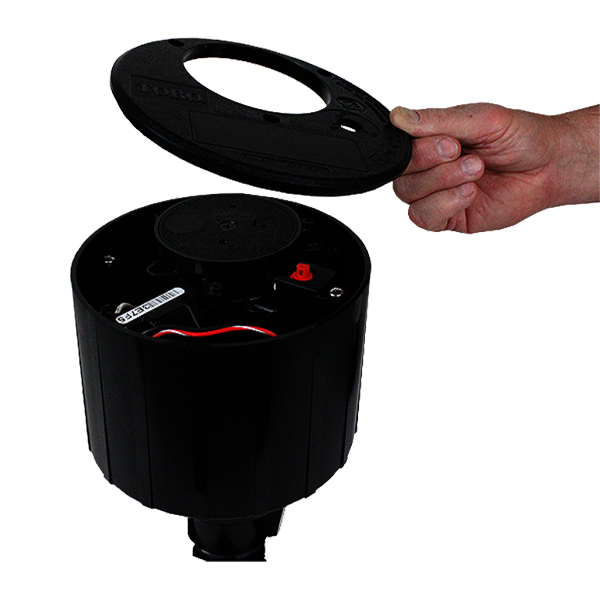

With Smart Access, Toro has designed a sprinkler in which every element – big or small, mechanical or electrical – is easily accessible from the top of the unit. Sprinkler maintenance has never been easier.



It means an end to digging out the sprinkler for adjustments, avoiding consequent damage to the playing surface and all the time-consuming rectifying work needed to make good.



Plus, with part/full circle drive, you can simply and economically adjust the area of coverage to match seasonal watering needs. No disassembly or additional parts required.

Downloads

  • Arc 40 to 330 and 360 degrees
  • Body style 1.5" ACME or BSP
  • Trajectory 7 to 30 degrees
  • Radius 12.8m to 28.1m
  • Flow rate 52.6 to 231.3 LPM
  • Activation type DC latching / AC coil / decoder

  • Operating pressure

    Recommended 4.5 to 6.9 bar
  • Maximum 10.3 bar
  • Minimum 2.8 bar

Features

  • Full and part circle adjustable 1.5-inch ACME or BSP body
  • Ratcheting riser allows aligning of part circle quickly and to easily adjust watering locations to suit seasonal needs
  • AC or DC coil option
  • Hot spot watering
  • Adjustment with no disassembly
  • Nine nozzle variations
