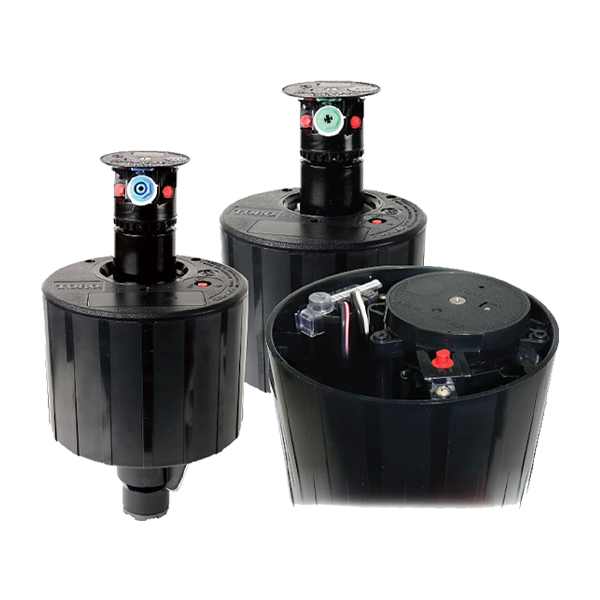

Infinity 54 dual trajectory

The Toro Infinity 54 sprinkler has all the quality features of increased efficiency, enhanced course appearance and improved playing conditions, for which Toro is renowned, but with the big added benefit of ‘Smart Access’.

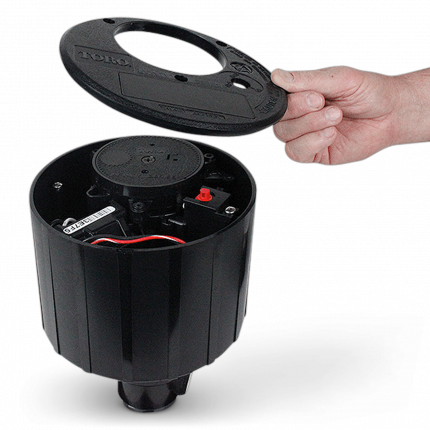

With Smart Access, Toro has designed a sprinkler in which every element – big or small, mechanical or electrical – is easily accessible from the top of the unit. Sprinkler maintenance has never been easier.



It means an end to digging out the sprinkler for adjustments, avoiding consequent damage to the playing surface and all the time-consuming rectifying work needed to make good.



In addition, the dual trajectory main nozzle provides exceptional performance at 25 or 15 degrees and the constant velocity full circle drive ensures even and consistent water coverage every time you water.

Downloads

  • Arc 360 degrees
  • Body style 1.5" ACME or BSP
  • Trajectory 15 or 25 degrees
  • Radius 17.7m to 30.2m
  • Flow rate 50 to 233.9 LPM
  • Activation type DC latching / AC coil / decoder

  • Operating pressure

    Recommended 4.5 to 6.9 bar
  • Minimum 2.8 bar
  • Maximum 10.3 bar

Features

  • Full circle adjustable 1.5-inch ACME or BSP body
  • AC or DC coil option
  • Dual trajectory nozzle adjustment, 15 or 25 degrees
  • Constant velocity full circle drive
  • Radius reduction screw
