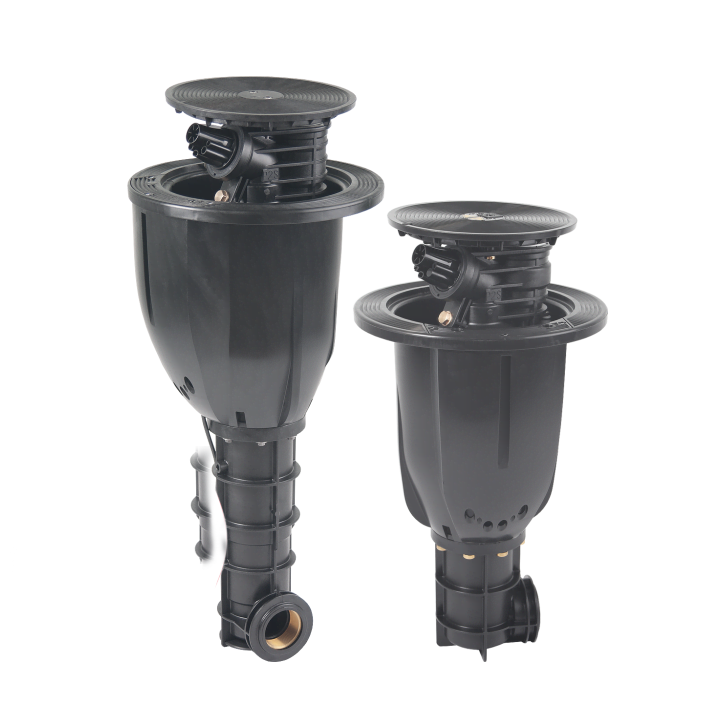

Piston drive pop-up sprinkler VP3

The VP3 is a piston-driven sprinkler and the only one of its kind. It is capable of shooting water up to 54 metres, which allows the sprinklers to be installed only around the outside edge of the pitch/field. This type of installation is ideal for artificial turf football fields, where the ground makes sprinkler installation more difficult. On artificial fields, irrigation is needed to cool down the surface, improve playability and speed, and reduce the risk of injury.



VP3 sprinklers can be operated by a controller with Sector Scout which identifies the same start and stop position for each rotation. This allows the sprinkler to cover the target area faster while saving water, making only one rotation instead of an average of 1.5 if the sprinkler starts in another position.



With a valve-in-head option to command each sprinkler from the controller and new nozzle technology that improves the casting range with reduced flow, it also offers very smooth turning performance, improving irrigation uniformity. Servicing is made easy through the top of the sprinkler.

Downloads

  • Operating pressure 4.0 - 8.0 bar
  • Flow rate 26 - 69m3/h
  • Trajectory 25 degrees
  • Casting range 34m - 54m

Features

  • Unique enclosed piston drive for precise irrigation
  • New nozzle technology for outstanding casting ranges with less water and higher distribution uniformity
  • Optional electric valve-in-head for individual control and a time-saving and cost-efficient installation
  • Option for valve-in-head version to include Sector Scout, which defines identical start/stop point for every head, improving flow rate and reducing runtime
  • All parts including the solenoid can be serviced from the top without the need for digging
