Advanced Underground Cable Locator

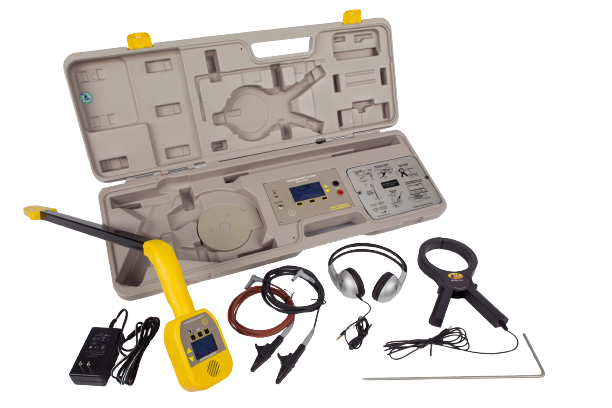

Armada cable detection products are used across many industries, including golf and sports to help detect, troubleshoot and diagnose. The Armada Pro900TM is the latest in Armada’s line of Electronic Underground Locators with an extended range making it suitable for even the largest of irrigation systems.



The availability of two connectionless tracking modes means simpler, safer tracing of buried wires and pipes, and the use of two selectable direct tracking frequencies makes the Pro900TM suitable for a wide range of wire depths and distances, with a tracking range of 8 feet (depth) 5,000 feet with direct connection (distance).

Downloads

  • Tracking range

    Depth 8 ft
  • Distance 5,000 ft with direct connection
  • Distance Unlimited with broadcast mode and leapfrogging
  • Signal output 900 V peak with no load
  • Power 1 W maximum

  • Tracking signals

    Frequency One 2 kHz direct connect
  • Frequency Two 33 kHz direct connect
  • Frequency Three 175 kHz via clamp or internal broadcast antenna

Features

  • Three modes of connection for flexibility and safety
  • Adjustable power with dual frequencies
  • Locating situations
  • AC power tracking
  • Extended range for the large irrigation systems
  • Power hum rejection for fast and accurate tracking
  • Sealed controls and display for durability and reliability
