Toro Infinity 55 Sprinkler with Smart Access 2
Toro Infinity 55 Sprinkler with Smart Access 2

Infinity 55 dual trajectory

The Toro Infinity 55 series sprinkler has all the quality features of increased efficiency, enhanced course appearance and improved playing conditions, for which Toro is renowned, but with the big, added benefit of ‘Smart Access’.

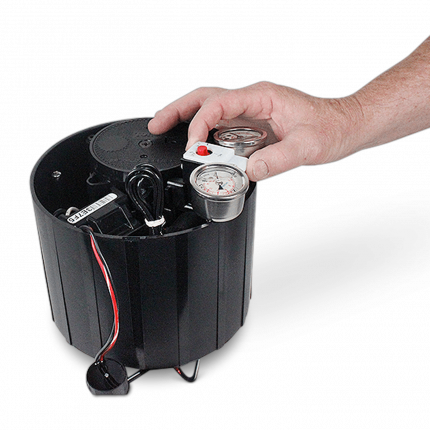

With Smart Access, Toro has designed a sprinkler in which every element – big or small, mechanical or electrical – is easily accessible from the top of the unit. Sprinkler maintenance has never been easier.



It means an end to digging out the sprinkler for adjustments, avoiding consequent damage to the playing surface and all the time-consuming rectifying work needed to make good.



Plus the 55 series sprinkler features a stainless steel valve seat, eliminating body damage from rocks and debris, built to last.

Downloads

  • Arc 40 to 330 and 360 degrees
  • Body style 1.5" ACME or BSP
  • Trajectory 15 or 25 degrees
  • Radius 16.8m to 28m
  • Flow rate 53 to 232 LPM
  • Activation type DC latching / AC coil / decoder

  • Operating pressure

    Recommended 4.5 to 6.9 bar
  • Minimum 2.8 bar
  • Maximum 10.3 bar

Features

  • Full and part circle adjustable 1.5-inch ACME or BSP body
  • Ratcheting riser allows aligning of part circle quickly and easily adjust watering locations to suit seasonal needs
  • AC or DC coil option
  • Dual trajectory nozzle adjustment, 15 or 25 degrees
  • Stainless steel valve seat
  • Radius reduction screw
  • Nine nozzle variations
